Back-to-back Installation Information
Back to back installation

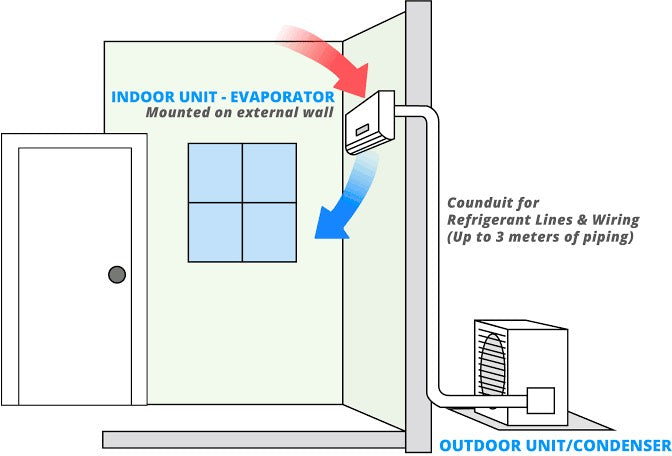

A back to back install is the simplest and cheapest way to fit a wall mounted split system. The indoor unit is mounted on an exterior wall and the outdoor unit sits directly behind it, so the pipe run between them is short and nothing has to be chased through the house.
It is the install type we sell online. Anything non standard is quoted from photos instead.
What the standard install includes
For a single level house, a standard back to back install is $870 incl GST and covers:
- A 4 metre pipe run
- Delivery of the unit to site
- Full installation by certified installers
- Power supply to the unit
- One year from 3Yes on the installation and the workmanship, on top of the manufacturer's warranty on the unit
Common additions
- Two level house. Everything in the standard install, at an additional $199.
- Independent power circuit to the board. Up to 15 metres, with a certificate of compliance provided, $399. This circuit is compulsory on any system over 5 kW cooling bought together with installation, and cannot be removed. It does not apply if you buy the unit on its own.
- Plastic platform for the outdoor unit. $80.
- Concrete pavers for an outdoor unit platform. $80 per pair.
- Stainless steel wall or roof bracket. $250.
- Custom made outdoor unit cover. Quoted to size.
- Wi-Fi control. Priced on request, and built in on some models.
Where we install
Our installation and servicing cover Auckland, Hamilton, Palmerston North and Wellington, from our Auckland base. We deliver units nationwide.
Not a standard install?
If the indoor and outdoor units cannot sit back to back, or the pipe run is longer than 4 metres, or the job involves a ducted or multi split system, we quote it rather than sell it online. Email photos of the wall where the indoor unit would go and the outdoor spot to info@3yes.co.nz and we will price it.
